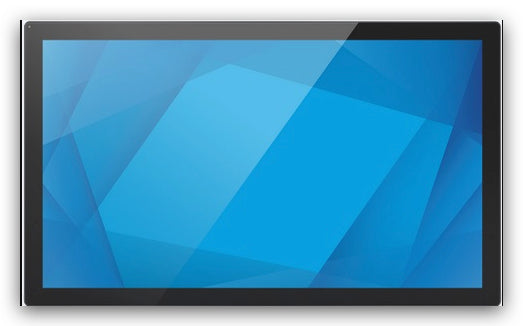

🖥️ Elo 3204L 32" Interactive Touch Screen Display
Experience powerful interactivity and vibrant clarity with the Elo 3204L 32-Inch Interactive Display. Built for demanding commercial and industrial use, this sleek touch screen combines responsive 40-point PCAP multitouch with full HD visuals, intuitive controls, and plug-and-play compatibility. Ideal for digital signage, collaboration stations, and control systems—this display elevates engagement with precision and elegance.
✨ Key Features
- Ultra-Responsive Touch: 40-point TouchPro® PCAP with palm rejection and glove support
- Touch-Thru Support: Operates through up to 6mm glass or 3mm plastic
- Full HD Display: 1920 x 1080 resolution on a 31.5" LED panel
- Advanced Connectivity: HDMI, USB-C, DisplayPort, RJ45, and Elo Edge Connect™
- Built-In Intelligence: EloView® & Crestron® IoT compatibility
- Designed for 24/7 Operation: Industrial-grade durability with 50,000-hour MTBF
- Flexible Mounting: VESA 400x400mm compatible for wall or stand integration
- Power-Efficient: Energy Star 8.0 certified with sleep and off modes
- Customizable Expansion: Compatible with Elo Backpack®, 2D scanners, RFID, camera, and more
📊 Technical Specifications
| Display Size | 31.5" Active Matrix TFT LCD (LED) |
| Resolution | 1920 x 1080 @ 60Hz (FHD) |
| Touch Technology | PCAP (TouchPro®) – 40 Touch Points with Palm Rejection |
| Brightness | LCD: 400 nits, PCAP: 320 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° (H/V) |
| Touch Interfaces | USB-C |
| I/O Ports | 2x HDMI 1.4, USB-C, DisplayPort 1.2, RJ45, 3.5mm audio, USB-A, 4x Edge Connect Micro USB |
| Speakers | 2 x 5W Stereo |
| Power Consumption | ON: 44W, Sleep: 1.43W, Off: 0.29W |
| Dimensions | 763.7mm x 458.1mm x 49.6mm |
| Weight | 10.9 kg (Unpackaged) |
| Mounting Options | VESA 400 x 400mm |
| Warranty | 3-Year Standard with Advanced Unit Replacement (AUR) |
📦 What’s in the Box
- 3204L Interactive Display
- Power Cables (NA, EU/KR, UK)
- USB Type-C Cable (1m)
- Mounting Screws for BrightSign
- Quick Install Guide
- Energy Labels (EU & UK)
- IEC C14 to C5 power cable (0.3m)
🔌 Optional Accessories
Expand your display capabilities with Elo accessories including barcode scanners, fingerprint/RFID readers, Elo Backpack®, wall mounts, cameras, Wi-Fi kits, and more.
🌎 Certifications & Compliance
Certified for global use: UL, FCC, CE, VCCI, RCM, CCC, EAC, Energy Star 8.0 and IK07 drop-tested. Compliant with RoHS and eco-regulations for safe and sustainable operation.
